IDC cable learning notes







































I found the buzzer connected through the P5 header is not working.  So I guess it was because earlier I pulled the cable too hard while trying to disconnect and the bracket fell apart.  I later locked it back but I guess the cables are misaligned.

The lesson learnt is NEVER pull by the cable.  Instead, I should hold the bottom portion, near the socket side, when pull out or unplugging.

So I made a new cable.  I read the package and wikied to learn that the connector is call IDC cable.

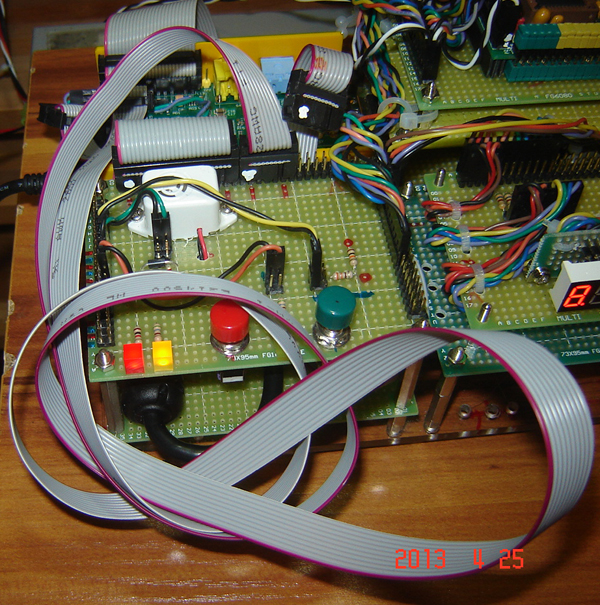

This time I made a 1.2m long cable, so that I can swap RPi or peripherals easily.

.END


http://en.wikipedia.org/wiki/Insulation_displacement_connector

http://reprap.org/wiki/MakeIDCCable
