Raspberry Pi P5 header hacking notes

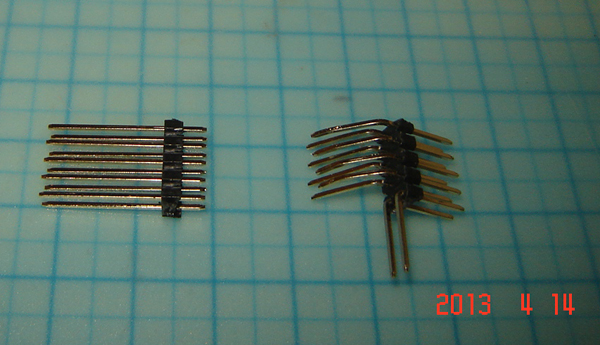

Last time what I did to the P5 header is to use long pin male connectors and bent them outside, so that it won't block the way of the P1 header.  This time I added a 2 pin DuPoint male connector alongside the 8 main pins.  This way I can use a 10 pin IDC press on female connector to acces both P5, TP1, and reset signals.

.END
